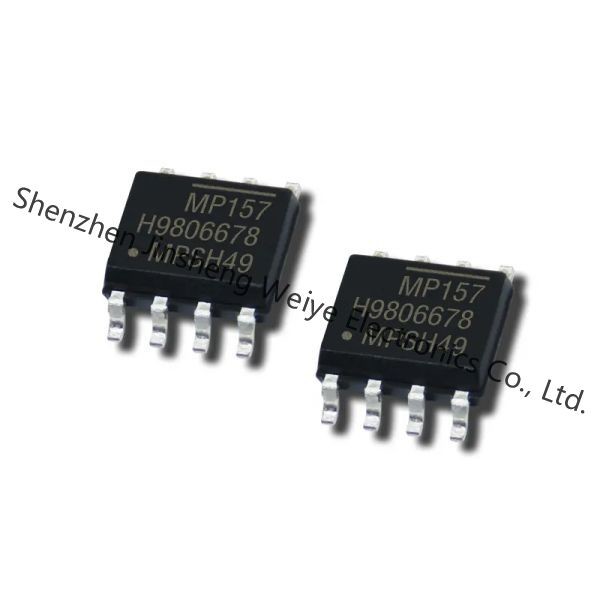

MP157GS-Z AC DC Power Management ICs Integrates 100mΩ MOSFETS

Name: MP157GSZ AC DC Power Management ICs Integrates 100mΩ MOSFETS
Brand: Monolithic Power Systems
Price: 1 USD

Brand Name : Monolithic Power Systems

Model Number : MP157GS-Z

Certification : ROHS

Place of Origin : Call

MOQ : Contact us !

Price : Contact us !

Payment Terms : Paypal, Western Union, TT

Supply Ability : 50000 Pieces per Day

Delivery Time : Send email to learn lead time

Packaging Details : Standard package

Product Name : MP157GS-Z

Condition : Original 100%

Installation methodpe : IC REG BUCK W

Package : 8-SOIC (0.154", 3.90mm Width)

Voltage - Supply : International standard

Max. Reverse Current : International standard

Application : AC DC Converters, Offline Switchers

Contact Now

MP157GS-Z AC DC Power Management ICs Integrates 100mΩ MOSFETS MP157GS-Z Datasheet

Product Details

DESCRIPTION

The MP1570 is a monolithic synchronous buck regulator. The device integrates 100mΩ MOSFETS that provide 3A continuous load current over a wide operating input voltage of 4.75V to 23V. Current mode control provides fast transient response and cycle-by-cycle current limit.

FEATURES

• 3A Output Current
• Wide 4.75V to 23V Operating Input Range
• Integrated 100mΩ Power MOSFET Switches
• Output Adjustable from 1.23V to 20V
• Up to 95% Efficiency
• Programmable Soft-Start
• Stable with Low ESR Ceramic Output Capacitors
• Fixed 340KHz Frequency
• Cycle-by-Cycle Over Current Protection
• Input Under Voltage Lockout
• Thermally Enhanced 8-Pin SOIC Package

APPLICATIONS

• Distributed Power Systems
• Pre-Regulator for Linear Regulators
• Notebook Computers

Specifications

Attribute	Attribute Value
Manufacturer	Monolithic Power Systems
Product Category	AC DC Converters, Offline Switchers
Series	MP157
Product	Voltage Converters
Type	Off Line Regulator
Packaging	Tray Alternate Packaging
Mounting-Style	SMD/SMT
Tradename	EasyPower
Package-Case	8-SOIC (0.154", 3.90mm Width)
Operating-Temperature	-40°C ~ 125°C (TJ)
Mounting-Type	Surface Mount
Supplier-Device-Package	8-SOIC
Watt	6W
Number-of-Outputs	1 Output
Output-Isolation	Non-Isolated
Internal-Switch-s	Yes
Voltage-Breakdown	500V
Topology	Boost, Buck, Buck-Boost, Flyback
Voltage-Start-Up	-
Voltage-Supply-Vcc-Vdd	4.45 V ~ 4.6 V
Duty-Cycle	-
Frequency-Switching	-
Fault-Protection	Open Loop, Over Load, Over Temperature, Short Circuit
Control-Features	-
Output-Power	6 W
Output-Current	360 mA
Input-Supply-Voltage-Max	500 V

Descriptions

Converter Offline Boost, Buck, Buck-Boost, Flyback Topology 8-SOIC

AC/DC Converters 6W AC-DC Buck Reg

Who we are?

is a professional electronic marketing corporation entirely engaged in the fields of semi-conductors and electronic components sale and service for clients over 10 years, specialize in selling the new and unused, original factory sealed packing electronic components. specialize in IC,diode,transistor,IGBT,DC-DC converter.....***has set up our own sales service conception and has already established strong partnerships with many famous manufacturers and we have more than 5,000,000 kinds of electronic components for your choices, always at your services !

FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer OF Integrated Circuit Chip . We can do OEM/ODM business.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: How to buy your products?
A: You can buy the products from our company directly.Normally the procedure is sign the contract, payment by T/T,Contact the shipping company to delivery the goods to your country.

Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.
