SMF05CT1G ESD Suppressors / TVS Diodes 5 Line TVS Array

Name: SMF05CT1G ESD Suppressors TVS Diodes 5 Line TVS Array
Brand: ON Semiconductor
Price: 1 USD

Brand Name : ON Semiconductor

Model Number : SMF05CT1G

Certification : ROHS

Place of Origin : Call

MOQ : Contact us !

Price : Contact us !

Payment Terms : Paypal, Western Union, TT

Supply Ability : 50000 Pieces per Day

Delivery Time : Send email to learn lead time

Packaging Details : Standard package

Product Name : SMF05CT1G

Condition : Original 100%

Installation methodpe : 12.5V Clamp 8A (8/20µs) Ipp Tvs Diode Surface Mount SC-88/SC70-6/SOT-363

Package : SC70-6

Voltage - Supply : International standard

Max. Reverse Current : International standard

Application : TVS Diodes

Contact Now

SMF05CT1G Datasheet

Product Details

400 Watt Peak Power Zener Transient Voltage Suppressors

Bidirectional*

The SMA series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SMA series is supplied in ON Semiconductors exclusive, cost‐effective, highly reliable Surmetic package and is ideally suited for use in communication systems, automotive, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications.

Features

• Working Peak Reverse Voltage Range - 10 V to 78 V
• Standard Zener Breakdown Voltage Range - 11.7 V to 91.3 V
• Peak Power - 400 Watts @ 1 ms
• ESD Rating of Class 3 (> 16 kV) per Human Body Model
• Response Time is Typically < 1 ns
• Flat Handling Surface for Accurate Placement
• Package Design for Top Slide or Bottom Circuit Board Mounting
• Low Profile Package
• Pb-Free Packages are Available

Specifications

Attribute	Attribute Value
Manufacturer	ON Semiconductor
Product Category	TVS Diodes
Manufacturer	ON Semiconductor
Product-Category	TVS Diode Arrays
RoHS	Details
Brand	ON Semiconductor
Polarity	Unidirectional
Number-of-Channels	5 Channel
Breakdown-Voltage	6.2 V
Clamping-Voltage	12.5 V
Peak-Surge-Current	8 A
Mounting-Style	SMD/SMT
Termination-Style	SMD/SMT
Series	SMFxxCT1G
Minimum-Operating-Temperature	- 40 C
Maximum-Operating-Temperature	+ 125 C
Package-Case	SC-70-6
Cd-Diode-Capacitance	80 pF
Length	2 mm
Packaging	Reel
Pd-Power-Dissipation	100 W
Type	5-line Transient Voltage Suppressor Arrays
Width	1.25 mm
Working-Voltage	5 V

Descriptions

TVS DIODE 5VWM 12.5VC SC88

ESD Suppressor TVS Uni-Dir 5V Automotive 6-Pin SC-88 T/R

TVS Diode Arrays 5 Line TVS Array

Who we are?

is a professional electronic marketing corporation entirely engaged in the fields of semi-conductors and electronic components sale and service for clients over 10 years, specialize in selling the new and unused, original factory sealed packing electronic components. specialize in IC,diode,transistor,IGBT,DC-DC converter.....***has set up our own sales service conception and has already established strong partnerships with many famous manufacturers and we have more than 5,000,000 kinds of electronic components for your choices, always at your services !

FAQ
Q: Are you trading company or manufacturer?
A: We are original manufacturer OF Integrated Circuit Chip . We can do OEM/ODM business.
Q: How long is your delivery time?
A: Group buying delivery time: 30-60 days; General delivery time: 20 days.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: How to buy your products?
A: You can buy the products from our company directly.Normally the procedure is sign the contract, payment by T/T,Contact the shipping company to delivery the goods to your country.

Q: What is the warranty ?
A: The free warranty is one year from the day of Commissioning qualified.If there is any fault for our products within the free warranty period, we will repair it and change the fault assembly for free.

China SMF05CT1G ESD Suppressors / TVS Diodes 5 Line TVS Array factory

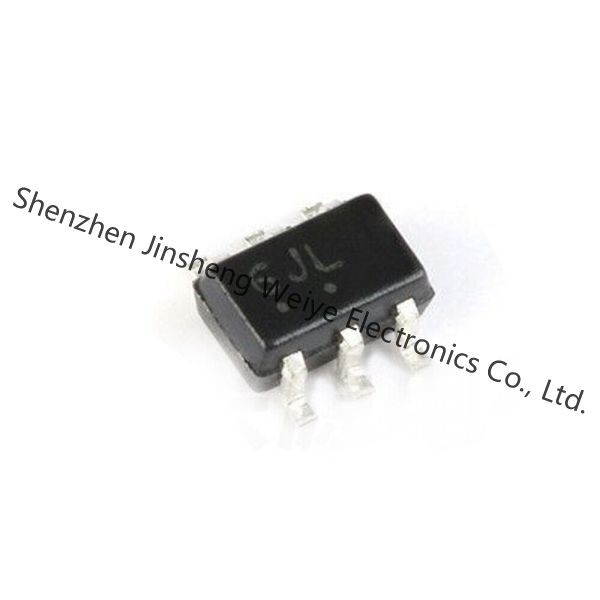

SMF05CT1G ESD Suppressors / TVS Diodes 5 Line TVS Array Images
